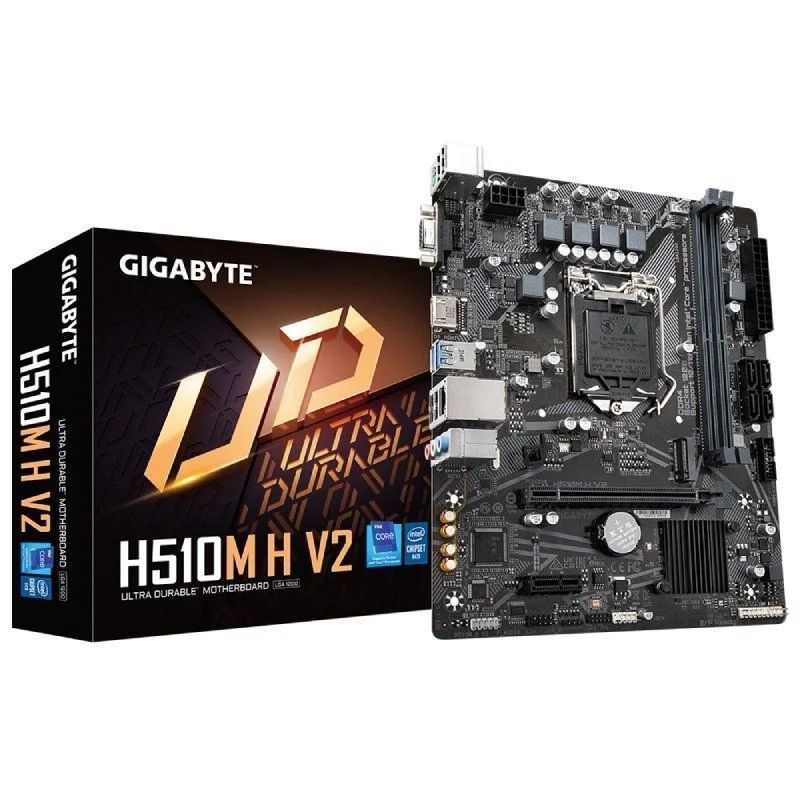

Mayorista de placas base de GIGABYTE H510M-H, perfecto para poder mantener tu equipo cuenta con socket 1200 y DDR4.
Especificaciones Técnicas
- CPU
- LGA1200 package:
- 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
- 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
- L3 cache varies with CPU
- (Please refer to "CPU Support List" for more information.)
- Chipset: Intel® H470 Express Chipset
- Memoria
- 11th Generation Intel® Core™ i9/i7/i5 processors:
- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
- 10th Generation Intel® Core™ i9/i7 processors:
- Support for DDR4 2933/2666/2400/2133 MHz memory modules
- 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
- Support for DDR4 2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (Please refer "Memory Support List" for more information.)
- Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- * Support for HDMI 1.4 version and HDCP 2.3.
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- * The D-Sub port is only available with the 10th Generation processors.
- (Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion Slots
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface
- Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
